Electric Multiple Unit

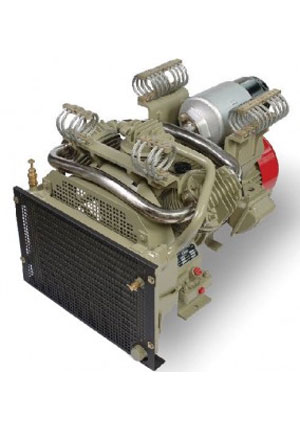

RR 15070

Key Features :

  • ☞ This is the first ‘W’ shape design air compressor developed for EMU’s and MEMU’s
  • ☞ Higher output for air spring suspensions and automatic doors
  • ☞ Under slung mounting design along with wire rope isolators
  • ☞ Introduced latest innovative design of ‘Hollow rotor shaft’ for motor, which eliminates conventional coupling

    • Features :

  • ☞ W-type configuration, three cylinder, two-stage, oil splash lubricated, air-cooled and underslung mounting
    • Download Brochure...

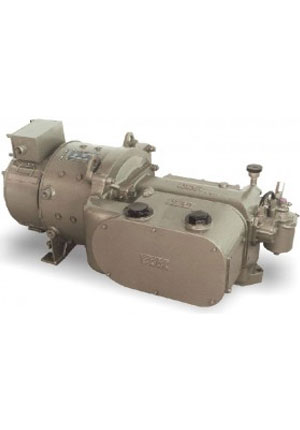

    TRC 1000 DCM

    Key Features :

  • ☞ Compact and robust in design
  • ☞ Positive lubrication through ‘Oil Pump’
  • ☞ Provided with magnetic drain plugs to attract iron particles in the lubricating oil to provide
  • ☞ purified lube oil

    • Features :

  • ☞ Inline configuration, three cylinder, two-stage, forced lubrication, air-cooled and direct coupled.
    • Free Air Delivery 1100 lpm (38.84 cfm)
    Working Pressure 7 Kg/cm2
    Overall Dimension (L x B x H) 1245 x 590x 540 mm
    Weight 405 Kg (Approx.)
    Download Brochure...

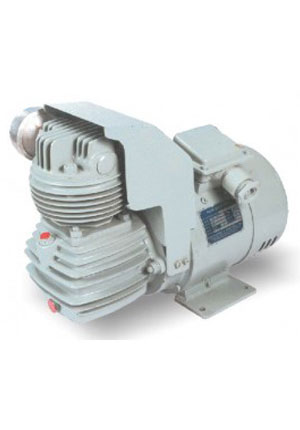

    ICRC 150

    Key Features :

  • ☞ Easy to mount on locomotives and EMU’s
  • ☞ For lifting pantograph of locomotives and EMU’s efficiently
  • ☞ Operates at 110V DC power supply

    • Features :

  • ☞ Mono-block vertical configuration, single cylinder, single-stage, oil splash lubricated and air-cooled.
    • Free Air Delivery 100 lpm (3.53 cfm)
    Working Pressure 8 Kg/cm2
    Overall Dimension (L x B x H) 450 x 235 x 350 mm
    Weight 45.5 Kg ( Approx.)
    Download Brochure...

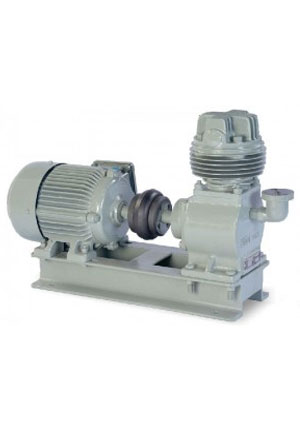

    WRA-AC (Water Raising Apparatus)

    Key Features :

  • ☞ Highly reliable for raising water in coaches
  • ☞ Light in weight and compact

    • Features :

  • ☞ Mono-block vertical configuration, single cylinder, single-stage, oil splash lubricated, air-cooled and direct coupled.
    • Free Air Delivery 55 lpm (1.94 cfm)
    Working Pressure 1.75 Kg/cm2
    Overall Dimension (L x B x H) 640 x 285 x 410 mm
    Electric Supply 415 V, 3 Phase, 50 Hz
    Weight 45.5Kg ( Approx.)
    Download Brochure...

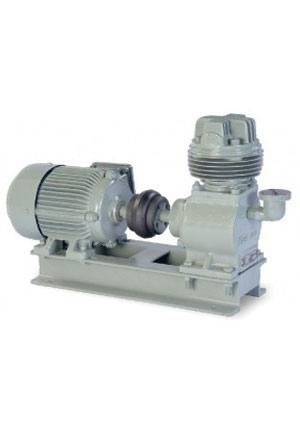

    WRA-DC (Water Raising Apparatus)

    Key Features :

  • ☞ Highly reliable for raising water in coaches
  • ☞ Compact and light weight design

    • Features :

  • ☞ Mono-block vertical configuration, single cylinder, single-stage, oil splash lubricated, air-cooled, direct coupled.
    • Free Air Delivery 55 lpm (1.94 cfm)
    Working Pressure 1.75 Kg/cm2
    Overall Dimension (L x B x H) 800 x 260 x 450 mm
    Electric Supply 110 V DC
    Weight 55.5 Kg (Approx.)
    Download Brochure...
