Electric Locomotive

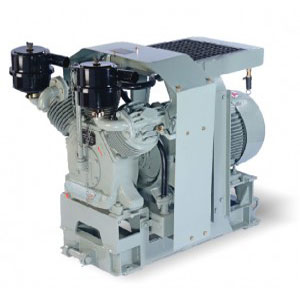

TRC 1000 MN-UG

Key Features :

  • ☞ Upgraded version of TRC1000MN
  • ☞ Robust in design with enhanced performance and less maintenance
  • ☞ These compressors are used in conventional loco model WAP4, WAG5 and WAG7 locomotives manufactured by Chittaranjan Locomotives Works, Chittaranjan and BHEL, Jhansi
  • ☞ Unique ‘Disc Type Coupling’ arrangement which requires very less attention and can take larger misalignment
  • ☞ Efficient air filtration system ensures higher compressor efficiency and low noise level

    • Features :

  • ☞ W type configuration, three cylinder, two-stage, oil-splash lubricated, air-cooled and direct coupled.
    • Download Brochure...

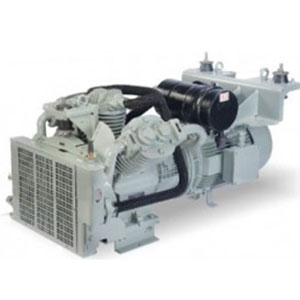

    RR 20100 CG (M)

    Key Features :

  • ☞ These compressors are meant for new generation 3 – phase locomotives model WAG9 and WAP5, WAP7 manufactured by Chittaranjan Locomotives Works, Chittaranjan
  • ☞ Unique underslung mounting design for locomotives
  • ☞ Customer friendly, adopted flange type joints and easy access suction filters
  • ☞ Improved design to meet railway reliability maintenance cycle
  • ☞ Meeting additional air requirement of air spring suspension system introduced in high speed trains Duranto & Rajdhani

    • Features :

  • ☞ W type configuration, three cylinder, two-stage, oil splash lubricated, air-cooled, direct coupled and underslung mounting.
    • Download Brochure...

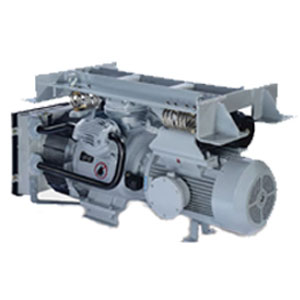

    RR 14100 OF

    Key Features :

  • ☞ 100% oil-free reciprocating compressor
  • ☞ Can be used in the place of existing lubricated compressor model TRC1000MN
  • ☞ PTFE coated & PTFE piston rings to ensure longer wear life
  • ☞ Environment friendly
  • ☞ Enhances life for accessories like air dryer, pneumatic equipment etc
  • ☞ Easy to maintain
  • ☞ Lower maintenance expenditure
  • ☞ Unique suction through crankcase design for enhanced

    • Features :

  • ☞ Oil Free, W type configuration, three cylinder, two-stage, air-cooled and direct coupled.
    • Download Brochure...

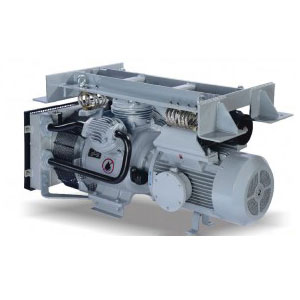

    RR 20100 OF

    Key Features :

  • ☞ 100% oil free reciprocating air compressor
  • ☞ PTFE coated & PTFE piston rings to ensure longer wear life
  • ☞ No lubrication required for pistons and cylinders
  • ☞ Efficient cooling ensure temperature rise 20oC above ambient

    • Features :

  • ☞ Oil free, W type configuration, three cylinder, two-stage, air-cooled, direct coupled and underslung.
    • Download Brochure...

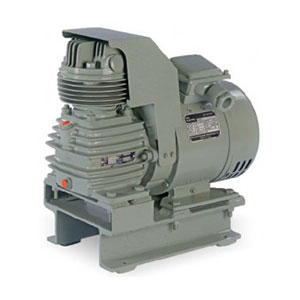

    RR 20100 OF

    Key Features :

  • ☞ Small footprint
  • ☞ Easy to mount on locomotives and EMUs
  • ☞ Lifts the pantograph efficiently

    • Features :

  • ☞ Mono-block vertical configuration, single cylinder, single-stage,oil splash lubricated and air-cooled.
    • Download Brochure...
