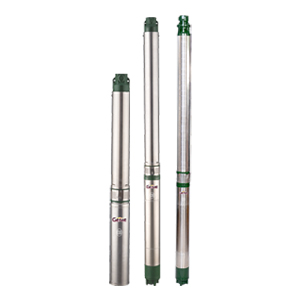

100MM BOREWELL SUBMERSIBLE PUMPS GENIE SERIES

The 100MM Borewell Submersible Pumps from the Genie Series represent a significant advancement in water management technology, designed specifically for efficient and reliable performance in various applications. These pumps are engineered to operate seamlessly in borewell depths, making them ideal for agricultural irrigation, industrial water supply, and domestic water extraction. With a robust construction and high-quality materials, the Genie Series pumps are not only durable but also resistant to corrosion and wear, ensuring a long operational life even in challenging environments.

What sets the Genie Series apart is its innovative design, which focuses on energy efficiency and reduced operational costs. The pumps incorporate advanced hydraulic components that optimize flow rates, enabling them to deliver maximum performance with minimal energy consumption. Additionally, the submersible design allows for quiet operation while effectively reducing cavitations, thus enhancing overall reliability. Users can expect consistent water delivery, even in fluctuating conditions, ensuring their water supply needs are met without interruption.

Application
Features
Specification

Domestic and municipal water supply

Rural water supply

Sprinkler system

Pressure boosting units

Fire fighting system

Industrial and mining application

    Motor portion covered with corrosive resistance Stainless steel (SS 304) shell
    More durability & hygiene
    High operating efficiency
    Specially designed thrustbearing to withstand high axial thrust load
    Extremely hardwearing water lubricated bearing
    Thread type motor construction ensures rigidity & service feasibility
    Power Range : 0.37 kW - 5.5 kW (0.5 HP - 7.5 HP)
    Voltage Range : Single Phase 220V, Three Phase 380 - 400V, 50Hz, AC Supply
    Maximum Total Head : 568 Metre
    Maximum Flow Rate : 7 lps (25.20 m³/h)

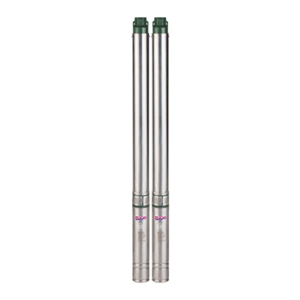

100MM BOREWELL SUBMERSIBLE PUMPS ZUNO SERIES

The ZUNO series of 100MM borewell submersible pumps stands out as a premier solution for groundwater extraction, particularly in agricultural and industrial applications. Designed with cutting-edge technology, these pumps offer exceptional efficiency and reliability, making them indispensable for ensuring a consistent water supply. The ZUNO series boasts a robust construction using high-quality materials that withstand harsh environmental conditions and ensure prolonged operational life, even in challenging terrains.

One of the key features of the ZUNO series is its advanced hydraulic design, which significantly enhances water delivery rates while minimizing energy consumption. This unique blend of performance and efficiency not only helps users reduce operational costs but also aligns with sustainability goals, making it an ideal choice for eco-conscious consumers. Additionally, the ZUNO pumps are equipped with user-friendly systems for easy installation and maintenance, alleviating common concerns associated with submersible pump operations.

Domestic

Irrigation

Agriculture

Farms Muncipal Water Supply

Industrial

Gardens

    Motor portion covered with corrosive resistance Stainless Steel (SS 304) shell
    More durability and hygiene
    High operating efficiency
    Specially designed angular contact bearing to withstand high axial thrust load
    Easy removal of stator ensures service feasibility
    Designed for wide voltage operation
    Non-toxic pre filled liquid motor ensures low voltage performance
    Power Range : 0.37 kW - 2.2 kW (0.5 HP - 3 HP)
    Version : Single phase 230 V; Three phase 415V, 50Hz, AC Supply
    Maximum Total Head : 220 metre
    Maximum Flow Rate : 7 lps (25.2 m³/h)

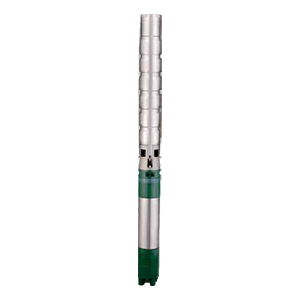

100MM BOREWELL SUBMERSIBLE PUMPS STEELIX SERIES

The 100MM Borewell Submersible Pumps from the Steelix Series are engineered to deliver exceptional performance and reliability for a variety of water management applications. Designed for deep well extraction, these pumps are ideal for agricultural, residential, and industrial use, providing efficient and consistent water flow. With a robust construction that incorporates high-quality materials, the Steelix Series ensures durability, reducing the risk of corrosion and damage, thus enhancing the lifespan of the pump.

One of the standout features of the Steelix Series is its energy-efficient motor design, which facilitates optimal performance while minimizing energy consumption. This not only contributes to lower operational costs but also aligns with sustainable practices, making these pumps an environmentally friendly choice. Additionally, the pumps are equipped with advanced hydraulic designs that ensure superior pumping efficiency, allowing them to handle varying water levels with ease.

Agricultural & irrigation

Food processing industry

Irrigation

Fountains

Fire fighting

De- Salination plants

    Pump components are made up of corrosive resistant SS 304/SS 316
    Motor portion covered with corrosive resistance stainless steel SS 304/SS 316 shell
    Best suitable for saline water and industrial applications
    High operating efficiency
    More longevity & hygiene
    Additional intermediate bearing on higher stage pump to ensure the deflection free rotation of pump.
    Power Range : 0.37 kW – 7.5 kW (0.5 HP - 10 HP)
    Voltage Range : Single Phase 230V; Three Phase 380-415V; 50Hz, AC Supply
    Maximum Total Head : 535 metre
    Maximum Flow Rate : 5 lps (18 m³/hr)

    Power Range : 2.2 kW – 26 kW (3 HP - 35 HP)
    Voltage Range : Single Phase 200-240V; Three Phase 380-415V; 50Hz, AC Supply
    Maximum Total Head : 566 metre
    Maximum Flow Rate : 22.22 lps (80 m³/hr)
