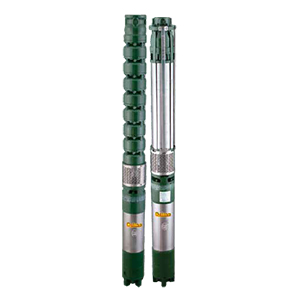

150MM SUBMERSIBLE, 150MM STAINLESS STEEL DELMA SERIES

The Delma Series of 150mm submersible pumps epitomizes cutting-edge technology and robust engineering, designed specifically for versatile applications in water management. Crafted from high-quality stainless steel, these pumps ensure durability and resistance to corrosion, making them ideal for use in harsh environments such as agricultural, industrial, and municipal water systems. Their compact 150mm design allows for easy installation in various settings, from deep wells to drainage systems, without compromising on performance.

The stainless steel construction not only extends the lifespan of the pumps but also contributes to maintaining water quality, as it eliminates the risk of leaching harmful substances into the water supply. Equipped with powerful motors, the Delma Series is capable of delivering high flow rates while maintaining energy efficiency, making them an economical choice for long-term use. Additionally, with their innovative hydraulic design, these pumps provide optimal hydraulic performance, ensuring both high reliability and minimal maintenance requirements.

Applications
Features
Specification

Domestic

Irrigation

Agriculture

Fire fighting

Pressure boosting

Gardens

    Optimized hydraulic design for efficient performance
    Specially designed thrust bearing to withstand high axial load
    T-Bolt design motor ensures rigid construction
    Smooth surface finish results friction free flow of fluid
    Designed for wide voltage applications
    SS 304 grade stainless steel stage casings and impellers in radial flow series
    Power Range : 1.5kW - 26kW (2HP - 35HP)
    Voltage Range : Single Phase 200 - 240V, Three Phase 380 - 415V, 50 Hz, A.C. Supply
    Maximum Total Head : 516 metre
    Maximum Flow Rate : 22 lps ( 79.2 m3 /h )

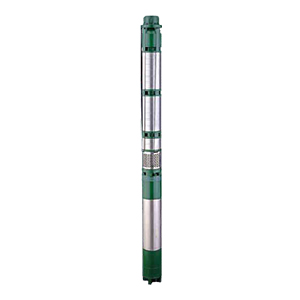

150MM SUBMERSIBLE, 150MM STAINLESS STEEL BINDA 6D SERIES

The 150mm submersible pumps from the 6D Series, engineered with high-quality stainless steel, exemplify reliability and efficiency in fluid management. Designed for a variety of applications, including agricultural irrigation, drainage, and water supply systems, these pumps deliver robust performance in both residential and industrial settings. The use of stainless steel not only ensures the durability and longevity of the 150mm submersible pumps but also provides resistance to corrosion, making them ideally suited for environments where exposure to water and chemicals is a critical concern.

The 6D Series features advanced hydraulic technology that optimizes flow rates and minimizes energy consumption, allowing for cost-effective operation without compromising performance. These pumps are equipped with a user-friendly design that facilitates easy installation and maintenance, making them a preferred choice among engineers and contractors alike. Moreover, the 150mm diameter adds to their versatility, allowing them to handle larger volumes of fluid, thus expanding their applicability across different sectors.

Domestic

Irrigation

Agriculture

Fire fighting

Pressure boosting

Gardens

    Double working capacity compared to other pump sets
    Corrosion resistant SS 304 stage casing SS 410 impeller increases the life of pump
    Helps to lift water from higher depth with reduced number of stages.
    Carbon Teflon pads are used to withstand the up thrust load.
    Specially designed Thrust Bearings to withstand high axial thrust loads
    Power Range : 2.2 kW - 22 kW (3 HP - 25 HP)
    Version : 3Ph - 380 - 415V, AC Supply
    Maximum Total Head : 500 Metre
    Maximum Flow Rate : 20 lps (72 m3/hr)
